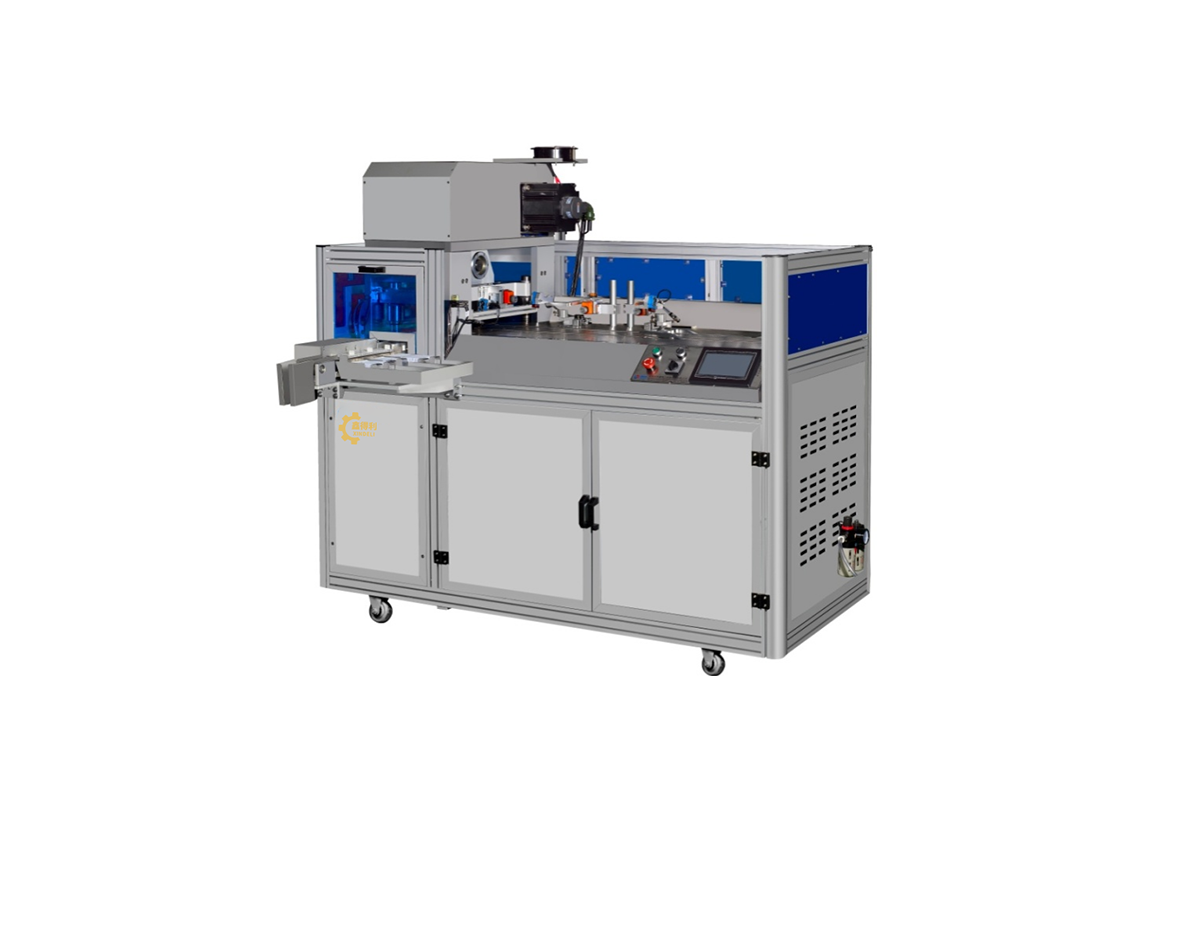

Semi-automatic punching machine （single magzine collecting system）

Main features:

This machine adopt PLC control, incorporating automatic feed material, sensor positioning, hydraulic pressure punching and card collecting card-base punching equipment

  • High sensitivity photoelectric sensor fit to imported servo system feed material, each punching location parameter can be adjusted, high precision punching effect.
  • Adopt import ball screw, guide rail, servo motor stepping feed material, high precision, long operating life
  • Big power, large torque servo as punching motivity, fast punching speed, big punching motivity and punching products edge more smooth.
  • Single card collecting, each standard card corresponding relevant collect card box, can meet to makeup layout card collecting.



Main technical parameters：

  • Voltage：380V 50HZ
  • Air source：6Kg/cm2
  • Suitable for：PVC、PET、PETG、PAPER CARD、MIXED MATERIAL…….
  • Suitable for：3X8、4X8、5X5
  • Control method：PLC programme +servo system
  • Output:：8000-12000pcs/h standard card （the more punching head the more output）
  • Power：5KW
  • Weight：900Kg
  • Dimension：L1700mm X W900mm X H1700mm
分类： , ,

描述

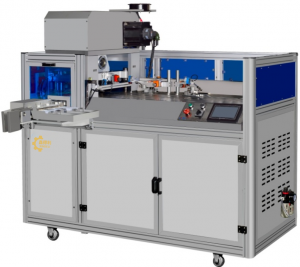

XDL-AP200  Semi-automatic punching machine （single magzine collecting system）

This machine adopt PLC control, incorporating automatic feed material, sensor positioning, hydraulic pressure punching and card collecting card-base punching equipment.
