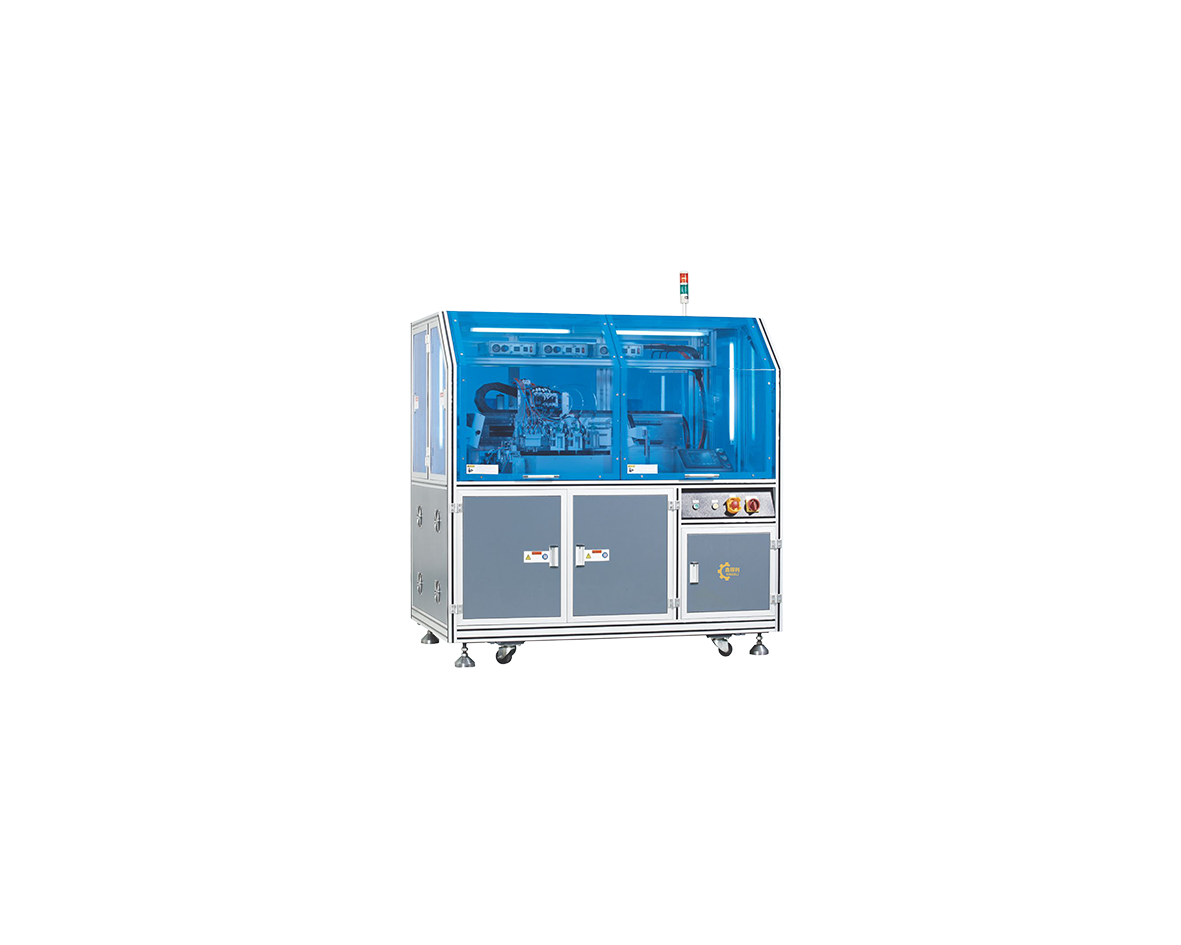

Automatic Module Pick And Place Machine

Product Details

Features:

• Stable running, flat chip placing and accurate position
• Layouts can be saved by CPU and each one can be used directly
• Precise position locating controlled by servo system
• Advanced dispensing technology is used to ensure placing of chip in good effect.
• Dowel positioning in the material installation and vacuum absorption
• Easy operation by color touch screen to support problems solved solution

Speciafications:

• Speed: 2600-3000 CPH
• Dimension: H2000*W1500*L2200mm
• Weight: about 1200 Kg
• Electric: AC220V 50/60HZ 20A
• Power: 5Kw
• Compress Air: 6kg/cm2
• Air Consumption: 120L/min
• Control Method: PLC control + PC positioning
• Servo Precision:
• Indexing per step=0.001mm
• Tolerance: 0.01mm
• Operator: 1 person
